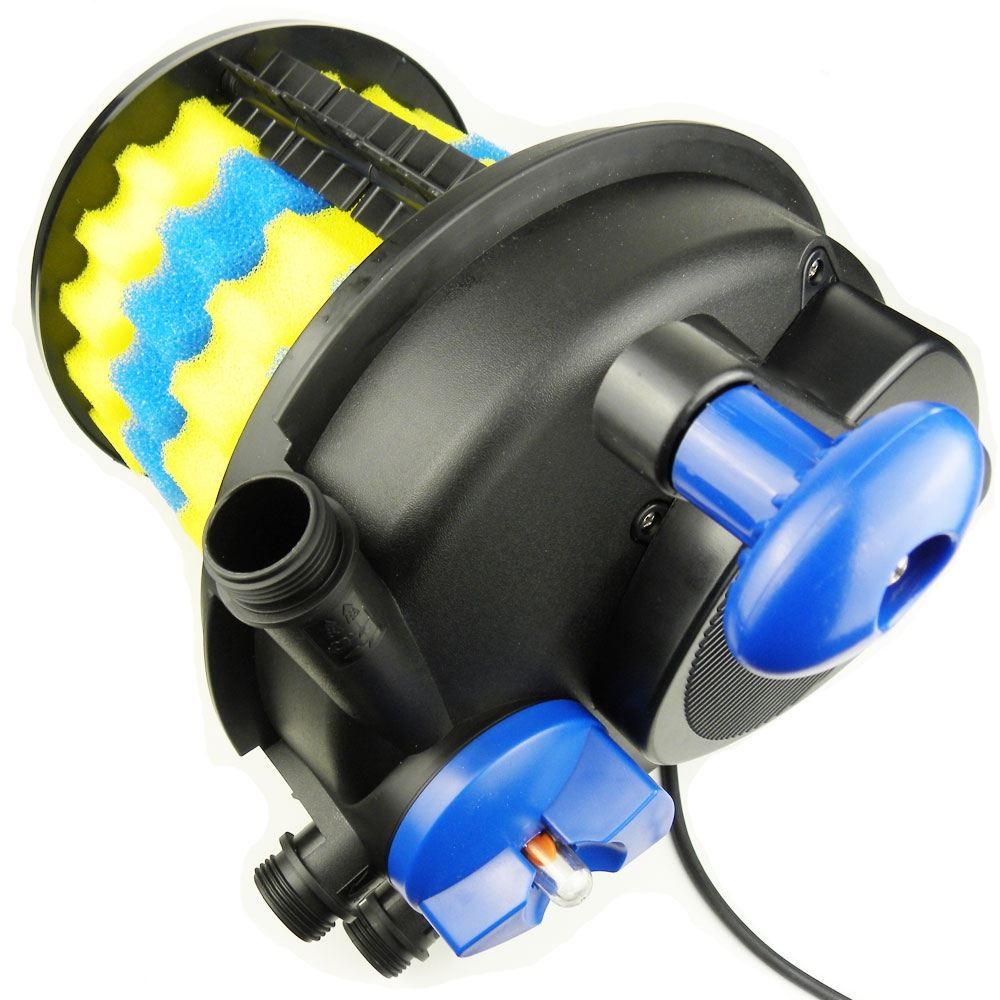

Spin Clean 12000 Pressurised Pond Filter

Summary

- Unpack all components carefully.
- Once installed and connected to a suitable pump the pond water will flow through the filter
- Position your filter as it can be buried up to it’s hinged lid and below the water exit point
- Your Pump and Filter Outlet should be positioned at opposite ends of the pond to promote maximum circulation.
- Connect the hose from your pump to this inlet hosetail and secure with hose clips<

Your filter is pump fed so must be connected to a suitable pond pump in order to work correctly. Ideally a solids-handling pump will be used as this will push dirty waste and debris into the filter. PondXpert filters are carefully inspected and tested to ensure both safety and operating performance. However, failure to follow the instructions and warnings in the manual may result in product damage and/or serious injury. Be sure to read the included instructions..

Easy Cleaning

1- Switch off pump.
2- Turn Dial to clean.
3- Turn handle to clean sponges.

Maintenance

As the filter does it’s job the foam filters will block up reducing water flow. If the pond is very dirty then the foams may need cleaning every couple of days or so at first.

“Full Clean” Cleaning Procedure:

The filter requires minimum maintenance. If your pond is very dirty, initially you may need to clean the filter every couple of days.

When the filtering process kicks in your water will become clearer and there will be less waste to remove.

The red domed indicator turns completely red when pressure builds inside the filter suggesting that cleaning is necessary.

Switch off any electrical connected to the pond (including the filter itself).

Access to the filter can be gained simply by unlocking the securing clamping bracket around the rim
(locking catches on smaller models). You can then simply lift the lid.

Take the foam filters out of the unit and carefully wash away any solids using a bucket of POND WATER.
Once clean replace the foams back in position.

The bacterial chamber at the bottom of the unit should not be cleaned unless they are highly contaminated and
should only be cleaned with pond water to preserve the microorganisms that keep your filter biologically active.

Quick Easy ‘SpinClean’

Turn to the ‘clean’ position, the water flow is reversed and exits through the waste outlet.
This waste water should run to waste by attachment of a suitable length of hose.

Now turn the blue handle to agitate the sponges. This will extract dirt from the internal sponges and this sludge will exit through the discharge outlet.

. Removing the filter

If your filter is ever taken away from the pond (ie-winter storage) then all of the filter media (foams and biomedia)
must be thoroughly cleaned before restarting.

Your filter will then need to undergo the ‘maturation’ procedure phase as described above.

* Note: Take care to ensure rubber O ring is correctly positioned between lid/unit after opening.
Failure to do so will lead to leaks (a smear of Vaseline around this ring may help keep the seal watertight).

Filtration Spares and consumables

The filter is supplied with everything you need to get started (including filter media,
UV bulb and quartz tube for the UV). Over time these parts may need replacing and can be purchased from your retailer.

Periods of operation

Maintain filtration 24 hrs a day through the fish feeding season (typically early March-October when the water
temperature is above 10 degrees C), but preferably all year round.

In the winter operating the pump and filter will maintain a background level of friendly bacteria in the filter
and help prevent the pond icing up in all but the severest weather conditions.

The UV bulb should be changed at the beginning of every new season.
The lamp may look like it is working but the levels of effective UV radiation decrease over time.
